RTD’S
Proheat’s general purpose RTD temperature sensor assemblies find use in a multitude of process and HVAC applications. Assemblies are offered with a choice of element materials, values and accuracies, a choice of element leadwire configurations, and a choice of sheath materials and diameters. Many assemblies are supplied in drilled or flanged wells, and all assemblies can be supplied with Proheat’s low cost integral head mounted RTD transmitter.

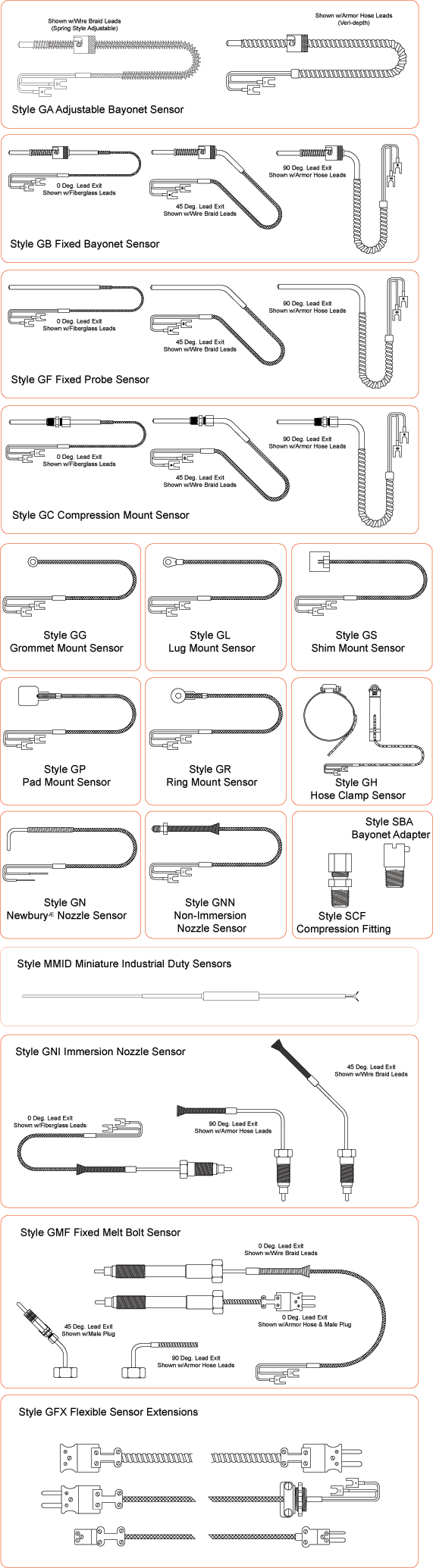

Click Above for Chart
RTD Elements
Element Options: 2, 3, 4 wire per element construction, single and duplex elements, wire wound or film type elements
Materials
Platinum, Copper, Nickel, Nickel-Iron
Values
Platinum (100, 200, 500, 1000 ohm)
Copper (10 ohm)
Nickel (120 ohm)
Nickel-Iron (604 ohm)
Accuracies
Platinum (±0.12%, ±0.1%, ±0.03%, ±0.01% at 0°C) All Others (from ±0.2% to ±0.5%)
RTD Sheaths
Sheath Options:
Compression fittings, welded bushings, flanges, bayonet fittings, sheath bends and Teflon¹® coating ¹ Trade name of E.I. DuPont
Sheath Materials:
316 Stainless Steel Standard (other materials available)
Sheath Diameters:
1/8″, 3/16″, 1/4″, 3/8″ OD’s and other fractional or metric sizes
Complete RTD Assemblies
Assembly Options:
High or low temperature construction, standard or miniature size plugs and jacks, choice of 8 connecting head materials, leadwire with several choices of insulation, leads with metal overbraid or in flexible armor.
Leadwire Termination Options:
Plugs, jacks, spade lugs, and special connectors
Sheath Termination Configurations:
RTD plugs and jacks, Standard screw cover and explosion-proof heads, Miniature heads, leadwires, Special construction
RTD Temperature Transmitter
|
Proheat’s RTD transmitters are designed to produce a linearized (4 to 20) mA dc output current signal, which is directly proportional to the temperature of the RTD temperature sensing element. A variety of models are available for RTD sensor inputs of different element values and temperature coefficients. Transmitters are available as part of a temperature sensor assembly or as stand alone units.
|
Standard Designs
